Solar Radiation Sensor (AR200-04)

Category:

Description

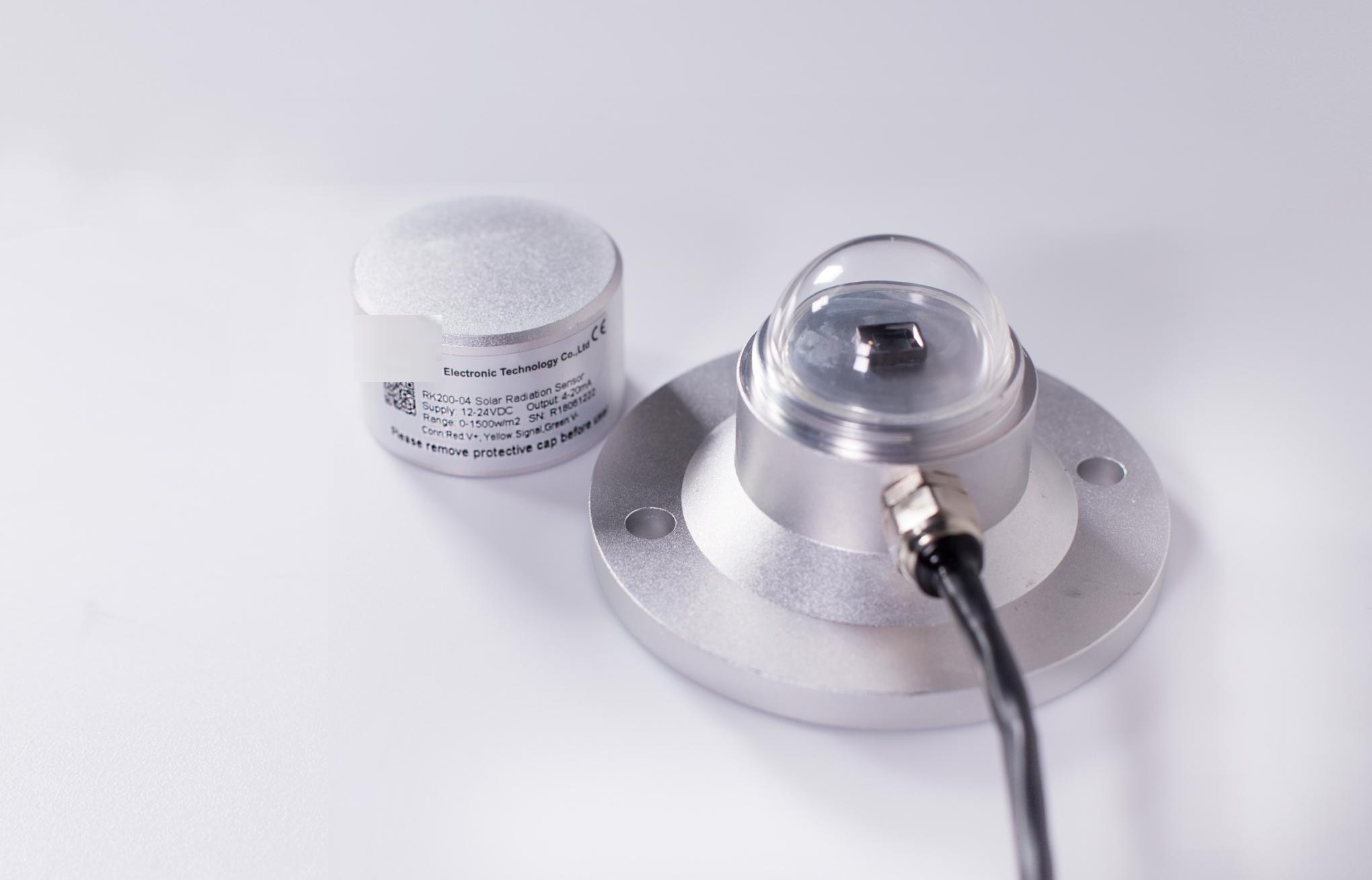

AR200-04 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-3000nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. It is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc.

Specifications

Item SPECIFICATIONS
Spectral range 300~1100nm
Supply 5V, 12-24VDC
Range 0-1750W/m2
Resolution 1W/m2
Output 0-5V, 4-20mA, RS485
Response time ≤5s
Cosine correction ≤±10%(Solar elevation angle=10°)
Non-linear ≤±3%
Temperature effect                                                  ±0.08%/
Stability ≤±2%/year
Operating Temperature                                                -40 ~+80
Ingress Protection IP65
Weight(unpacked) 420g
Shell material Aluminum alloy
Storage Condition 10℃-60℃@20%-90%RH

Documentation

Brochure of Solar Radiation Sensor (AR200-04)
